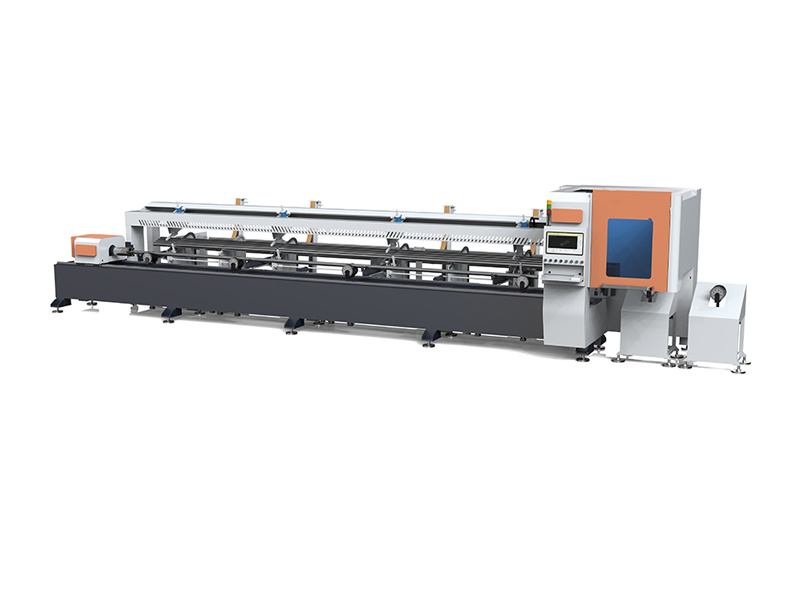

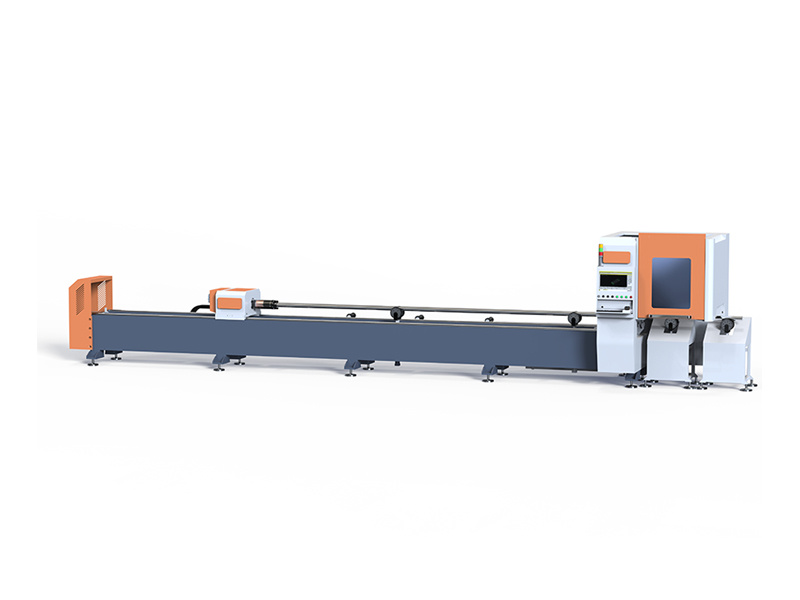

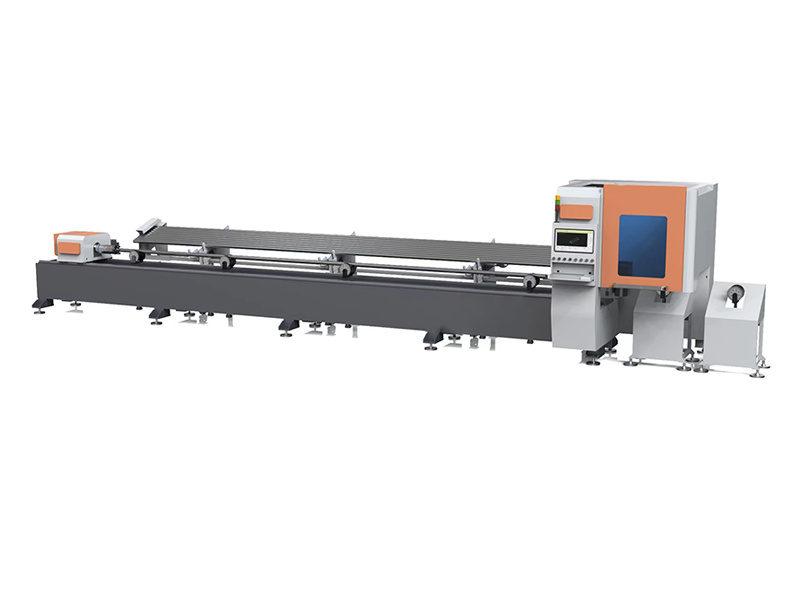

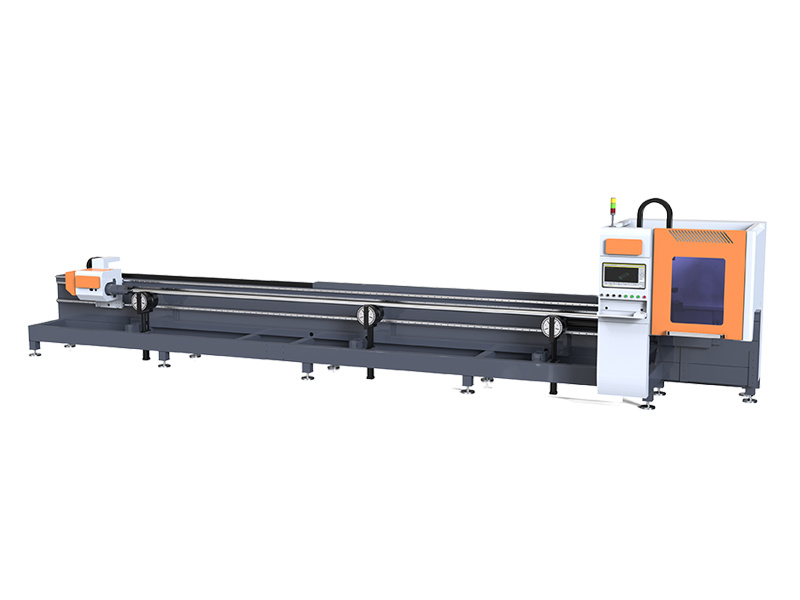

Horizontal Laser Pipe Cutting Machine (fully Automatic Pipe Cutting Machine)

Fast Speed. Super Stability, Common Specifications Range From 2500-3500 Segments/hour; Adopting Mainstream Industry Configurations With its cost-effective design and versatile cutting capabilities, these Discount Horizontal Laser Pipe Cutting Machine spots are the ideal destination for those seeking efficiency and quality in pipe cutting technology.

关键词:

Category:

Fiber laser tube cutting machine

Keyword： Horizontal Laser Pipe Cutting Machine (fully Automatic Pipe Cutting Machine)

E-mail:

admin@qymech.com

Message

Detail

Product Introduction:

Explore the precision and efficiency of the Horizontal Laser Pipe Cutting Machine, a fully Automatic Pipe Cutting Machine now available at Discount Horizontal Laser Pipe Cutting Machine spots. This machine is designed to offer high-speed cutting with exceptional stability, making it an ideal choice for a variety of pipe cutting applications. With its mainstream industry configurations, the Discount Horizontal Laser Pipe Cutting Machine spots provide a cost-effective solution for both large and small pipe precision machining.

The Horizontal Laser Pipe Cutting Machine boasts a range of cutting speeds from 2500-3500 segments per hour, ensuring quick and efficient production. At our Discount Horizontal Laser Pipe Cutting Machine spots, you’ll find a machine that is not only fast but also adaptable, with dual chuck control for flexible pipe length adjustment. This feature simplifies operation and enhances productivity. Whether you’re working with square tube, round tube, elliptical tube, channel steel, angle steel, I-beam, or any other pipe material, the Horizontal Laser Pipe Cutting Machine at our Discount Horizontal Laser Pipe Cutting Machine spots is up to the task.

Advantages and Characteristics of Horizontal Laser Pipe Cutting Machine

1. Fast Speed. Super Stability, Common Specifications Range From 2500-3500 Segments/hour;
2. Adopting Mainstream Industry Configurations, With High Cost-effectiveness, Suitable For Precision Machining Of Large And Small Pipes;
3. Dual Chuck Control Is More Flexible, And The Length Of The Pipe Can Be Directly Adjusted, Achieving Simple Operation;
4. There Are Various Types Of Cutting, Including Square Tube, Round Tube, Elliptical Tube, Channel Steel, Angle Steel, I-beam And Any Other Pipe Material

Equipment parameters

Laser generator	Chuangxin/Ruike
Laser head	Jiaqiang/Ousprui
Water cooling machine	Hanli
Chuck	Changzhou Biyote/Other options/Mobile with chuck
Servo motor	Delta/Huichuan
Guide rail slider	SHAC/AirTAC
Rack configuration	Optional material rack
Shortest cutting length	1mm
Loading length	6200mm
Cutting material thickness	Depending on the laser power (e.g. 3000W recommended≤ 8.0mm thickness)
Width of incision seam	0.1-0.15mm
Machine tool repeat positioning accuracy	± 0.05mm
Maximum acceleration	1.6G
Electricity demand	380V/50Hz
Total weight of equipment	About 4 tons
Equipment footprint	Length 9633 * Width 2993 * Height 2100
